SPECIAL ORDER ITEM

Approximate Lead Time: 8-12 weeks.
Deposit Required: 20% not including freight.

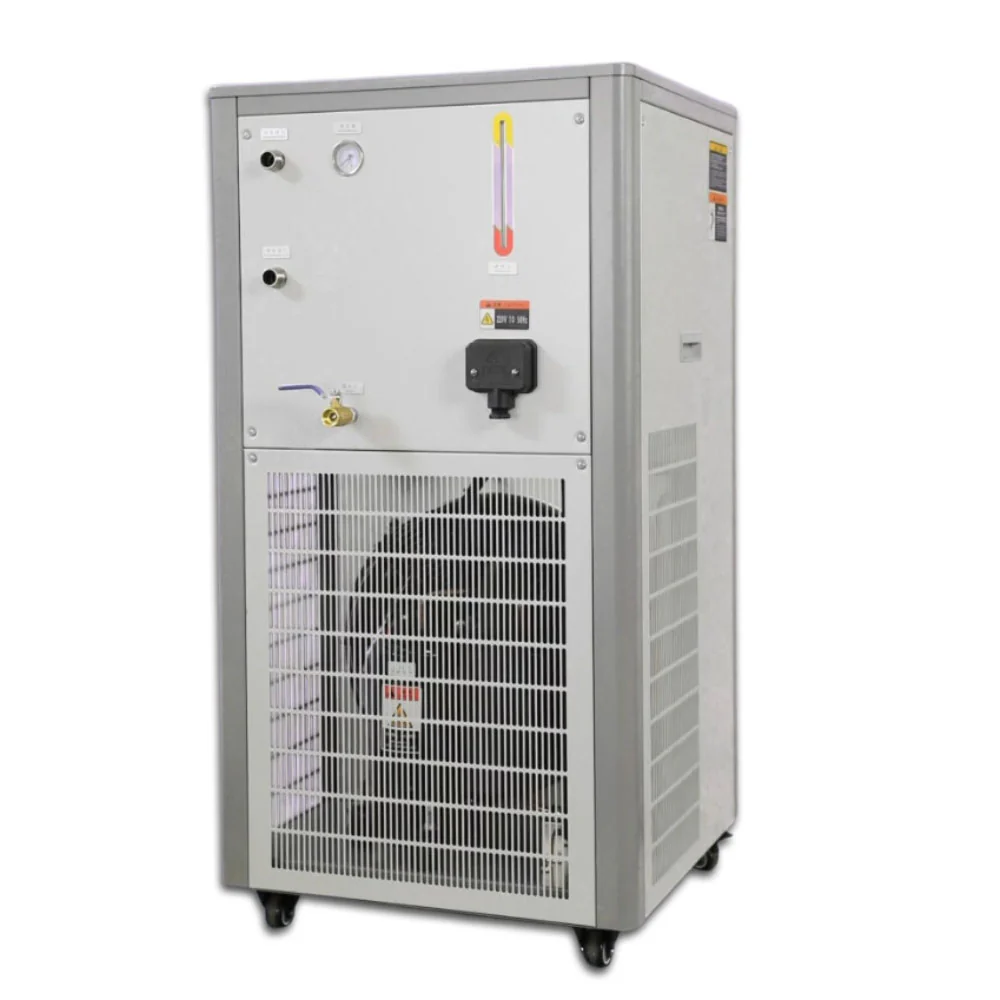

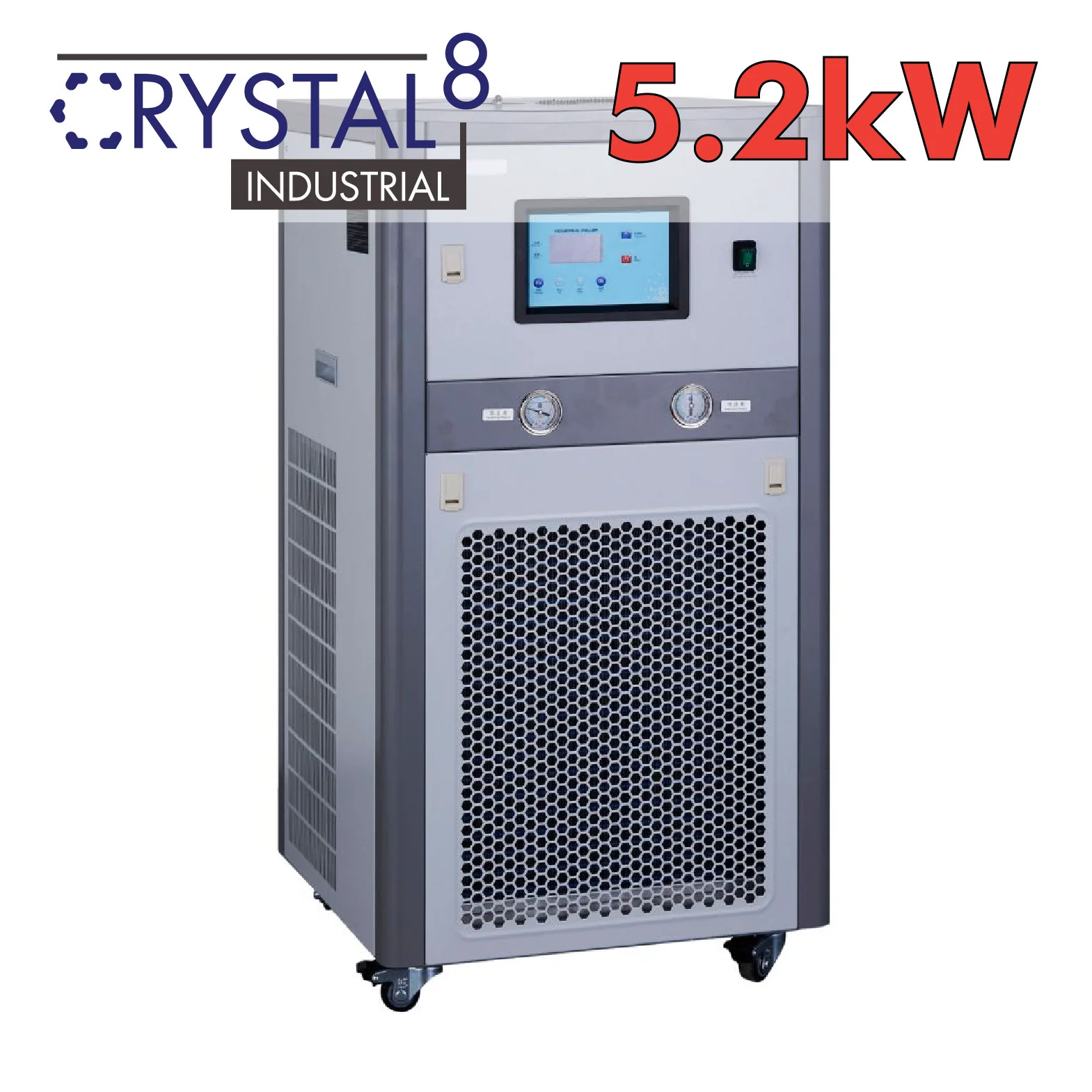

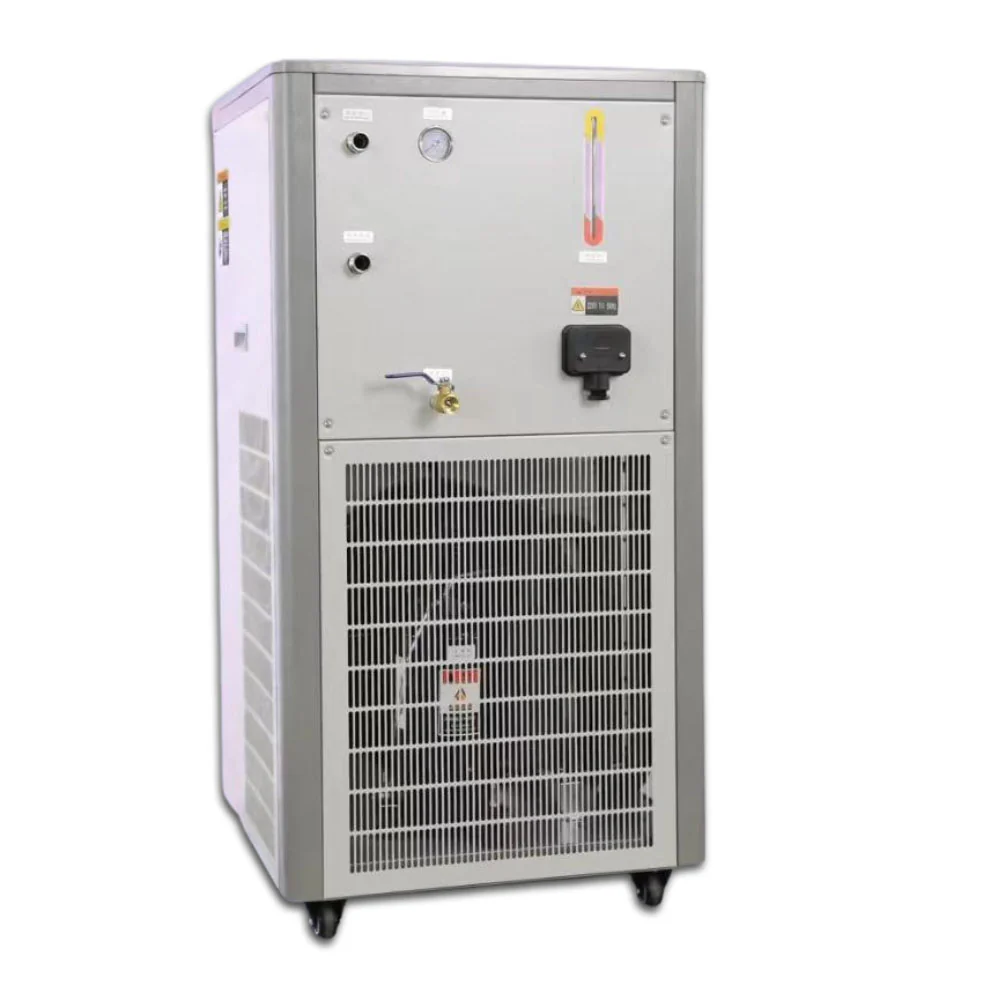

This compact yet powerful chiller is suited to any small-medium brewery that needs large cooling capacity while still ensuring highly efficient electrical efficiency boasting coefficient of performance greater than x3. This unit has low ongoing maintenance and is built with high level of reliability.

Suitable for cooling conical fermenters, bright beer tanks, or many other wine/beverage tanks.

This compact yet powerful chiller is powerful enough to cool approximately 2-3 x 600L Conical Fermenter Tanks and Crash Chill them if necessary while still having enough cooling power up the sleeve for some other applications.

It's designed with an inbuilt stainless glycol cooling tank however you might want to consider additional external cold tanks of glycol solution.

Please note: The pump installed within this unit recirculates from the glycol cooling tank internally through the evaporator. It does not pump externally. You will need to install external brewery pump(s) to circulate the glycol solutions to your fermenters. For a plumbing diagram please refer to the instruction manual.

Made from Danfoss and Emerson components for maximum reliability.

Specifications
Cooling Capacity: 5.2kW
Power: 10amp Single Phase
Power: 2.2kW
Integrated Tank Volume: 35L
Input/Output Fittings: DN20
Drain Output: DN15
Pump: Stainless centrifugal pump, Max Head 25meters
Refrigerant: R407C
Noise Level: 58dB
Dimensions: 600 x 600 x 1160
Weight: 120kg (dry)

Features
- Stainless glycol/water pump for internal recirculation within the chiller
- Colour touch screen with in depth diagnostics
- High efficiency copper shell and tube evaporator
- High efficiency hydrophilic aluminium fin condenser
- Made from rust resistant components
- Integrated stainless steel glycol tank
- Quiet operation
- Electrically efficient
- Shilin branded electrical components
- Reliable
